Welcome Home

MEZZO WINDOWS . . . QUALITY AT ITS BEST It’s the ultimate collaboration. Elegant, sleek style mixed with take-charge strength and energy efficiency. The aesthetics are everything you want in a window and the performance power is cutting-edge. Mezzo Windows are made for you. A LEGACY OF EXCELLENCE AND INNOVATION There is so much more to the windows in your home than the frame, sashes and glass. The true substance is the quality and expertise built into every step of the design and manufacturing process. In choosing Alside for your window installation, each window is custom-made to fit your window openings precisely. Our more than 75 years of industry excellence stands strong as our legacy of leadership and trust, where customer happiness always comes first. We also take special pride in producing your windows at our U.S. operations. This not only champions the tradition of American ingenuity and craftsmanship, it also fortifies our nation with quality jobs and economic dollars. The beauty of our EdgeForce narrowline frame and sashes is subtle and substantial at the same time. The sleek design is visually clean and contemporary, with a larger glass area for exceptional daylighting and outside viewing. And beneath the elegance? Internal chambers are meticulously engineered for structural integrity and enhanced energy efficiency. CoreFX is a structural component that never quits. This innovative low-conductive composite reinforcement in the sash meeting rails is designed for energy efficiency and the secure mounting of hardware.1 Stylish and strong, this low-profile secure locking hardware features an indicator that tells you if your windows are left unlocked. But the true beauty of Defense-Tek is its end-of-throw cam shift locking action, expertly constructed for increased protection. Forecaster elevates both the appearance and performance of Mezzo Windows with its smooth, uniform design. The true sloped sill is expertly crafted to provide a highly efficient drainage system that promotes water runoff without the use of weep holes. 2 The benefits distinction here is three-fold: protection from air and water infiltration, increased structural stability and enhanced beauty. The integrated telescoping sill dam effortlessly blends strength with style. When harsh wind and weather hit your home, Gatekeeper stands strong. Traditional sloped sill designs can allow the sash to bow during powerful winds, but with Gatekeeper interlocking sash-to-sill technology, the sash is channeled firmly into the window frame for a unified wall of strength. Combined with three layers of weatherstripping, Gatekeeper delivers unmatched protection, as well as peace of mind. Improved form and functionality is the focus of our Ocular screen bulb seal. The compression bulb aids in the installation and removal of the extruded aluminum screen. The snug fit also helps eliminate light penetration between the screen and frame and helps block insect access.3 4 1-3/8″ Nail Fin Set Back 1-3/8″ Nail Fin Set Back with J-Channel Adapter Triple-Pane Glass 1 Double-hung base model will automatically be upgraded to ST (steel reinforcement) for all units ordered in excess of 48″ wide or 84″ high. 2 For larger size windows or to meet specific DP/PG ratings, optional weeps/performance package must be ordered. 3 Available only with the full screen option. 4Not all nail fin options are available in all woodgrains. See your Alside Representative for more details. For enhanced appearance and ease of installation, two additional frame options also are available.4 Further improve the energy efficiency of Mezzo Windows with a triple-pane insulated glass option. FULLY FUSION-WELDED FRAME AND SASH CORNERS create superior strength and a clean, low-profile finished look. DUAL-PANE, DOUBLE-STRENGTH GLASS increases strength, durability and insulation. AIRTIGHT INSULATING CHAMBERS enhance thermal performance and durability. DUAL BULB SEALS along the bottom of the lower sash improve the appearance and create a tighter seal between the lower sash and true sloped sill when the window is closed and locked. (Double-hung and single-hung only.) DUAL VENT STOPS for limited and convenient opening of the window for ventilation. (Not available on single-hung or single-sliding windows.) HIDDEN SCREEN TRACK creates a clean-line design for enhanced visual appeal; half screens are standard, optional full screens available.5 Beauty Forged with Performance The closer you look, the more you’ll see why Mezzo is a standout choice for your home. 5 5Full screens are standard on exterior color-finished windows. 6 DISCOVER SUPERIOR QUALITY AND ENERGY EFFICIENCY FOR YOUR HOME Mezzo’s advanced design innovations paired with ultra-efficient insulating glass delivers exceptional functionality and style. Mezzo Windows provide a clean installation because they require no additional wall construction, in comparison to stock windows. Each window is custom-made with various frame and glass options to create the perfect window system for your home. Various selections include: Frame Type Double- or Triple-Pane Glass Sized to Exact Opening Mezzo Windows achieve exquisite detail you’ll appreciate every day, from every angle. Reducing energy loss is often the number one reason for purchasing replacement windows. Windows are roughly 80% glass, so it’s important to choose the ideal glass system for your home and climate. Upgrading to a high-performance Low-E (low-emissivity) insulated glass package will help further contribute to year-round energy savings. Mezzo offers a variety of high-performance insulated glass packages: • ClimaTech® combines insulating Low-E glass, argon gas** and the Intercept ® Warm-Edge Spacer System featuring a unique, one-piece metal alloy, U-channel design that creates an effective thermal barrier. • ClimaTech ThermD features insulating Low-E glass, argon gas and a Stainless Steel Intercept Warm-Edge Spacer System for even greater thermal efficiency. ENHANCED CAVITY FOAM OPTION Mezzo Windows innovative technology utilizes carbonized foam liners in select channels of the head, jamb and sill to create a highly effective thermal barrier against energy loss. The graphite-enhanced foam insulation outperforms typical EPS foam insulation in preventing air infiltration, thereby helping to reduce heating and cooling needs. Available in single-hung, double-hung, sliding and picture windows. TAKE A CLOSER LOOK AT MEZZO’S TRIPLE-PANE, ULTRA-EFFICIENT GLASS SYSTEM Further increase the energy efficiency of your Mezzo Windows with triple-pane glass protection. This high-performance design features a 1″ thick (nominal) glass unit, three panes of glass, two surfaces of Low-E (low- emissivity) technology and two spaces of argon gas, along with the ClimaTech ThermD Stainless Steel Intercept Spacer for a powerful energy-saving shield. You’ll also appreciate the improved overall comfort and quieter indoor ambiance of your home. High-Performance Glass Packages – Designed for Energy Savings Year-Round.* Winter Energy Savings: Low-E insulating glass helps reduce heat loss by reflecting warmth back into your home. Summer Energy Savings: Low-E helps block unwanted solar heat penetration to help conserve air-conditioning use. Argon Low-E Glass ClimaTech ThermD Stainless Steel Intercept Spacer 7 The ENERGY STAR label certifies that the window is a positive choice for energy efficiency, fuel savings and the environment. ENERGY STAR is a government-backed voluntary partnership program sponsored by the U.S. Environmental Protection Agency and the U.S. Department of Energy to help consumers recognize energy-efficient products. It’s good for you and good for the environment! Mezzo Windows meet or exceed ENERGY STAR requirements – and are certified and verified for energy-saving performance. The dual-pane, double-strength insulated glass, energy-engineered frame and sash and low-conductive composite reinforcements are just part of the advanced design that puts Mezzo in a class by itself. GLASS PACKAGES SPECIFIC TO YOUR NEEDS Insulated glass units increase the energy efficiency of your windows beyond ordinary clear glass and can tailor the window to your specific climate challenges. The chart below makes it easy to compare the glass performance. The lower the U-Factor, the less energy you’ll need to heat your home. The lower the Solar Heat Gain Coefficient (SHGC), the more you’ll conserve on air-conditioning. Above and Beyond – Mezzo Meets ENERGY STAR ® Requirements! Mezzo Windows and Alside Patio Doors are available with a variety of glass options. Please consult your window professional to help you choose an energy-efficient glass package to meet the ENERGY STAR requirements for your home and climate zone. Northern North-Central South-Central Southern MEETING ENERGY STAR 7.0 CRITERIA Alside windows offer a variety of ClimaTech glass packages to meet ENERGY STAR 7.0 certification in all climate zones. Window products that achieve ENERGY STAR Most Efficient may also qualify for federal tax credits.7 glass packages that can help your windows qualify for ClimaTech Tax Credits! Ask about 6Whole window values, standard Mezzo offering with composite reinforcements. Windows may require cavity foam based on glass pack selection. ST and HP performance values are also available. 7Windows must meet ENERGY STAR Most Efficient criteria and sliding patio doors must meet applicable ENERGY STAR requirements for “entry doors” to be eligible for the Inflation Reduction Act of 2022 tax credit. Not all windows within a model family meet ENERGY STAR 7.0 or Most Efficient criteria. Connect with NFRC for specific eligible models. For tax credit information, visit www.energystar.gov. The information provided is for informational purposes only and not intended to substitute for expert advice from a professional tax/financial planner or the Internal Revenue Service (IRS). THERMAL PERFORMANCE COMPARISON 6 Clear Glass ClimaTech ClimaTech Quattro ThermD ClimaTech SF ThermD ClimaTech Elite ClimaTech SF Elite ThermD ClimaTech Elite ThermD ClimaTech Elite Plus ClimaTech PriME TG2 ThermD S6 ClimaTech TG2 ThermD ClimaTech TG2 ThermD Elite U-Factor 0.46 0.28 0.24 0.24 0.28 0.23 0.27 0.27 0.19 0.21 0.22 SHGC 0.57 0.28 0.47 0.27 0.21 0.20 0.21 0.21 0.21 0.24 0.19 Double-Hung ENERGY STAR 7.0 Climate Zone – – N NC SC, S NC, SC, S SC, S SC, S N, NC, SC, S, ME N, NC N, NC, SC, S 8 FOREVER IN STYLE Mezzo’s refined and purposeful design stays true to the classic double-hung style, yet exudes a cool, contemporary elegance with clean lines and crisp corners. The double-hung window is equally loved for its carefree functionality. No need to struggle with hard-to-reach areas. Both sashes tilt in to allow easy cleaning from inside the comfort of your home. Built for everyday wear and tear, the expertly constructed sashes raise and lower easily on a constant force balance system, thus eliminating sash cords, weights and pulleys. Both the beauty and smooth operation of Mezzo Double-Hung Windows will be a simple pleasure. Near Right: The easy-to-clean feature of Mezzo Double-Hung Windows adds to its popularity. Simply tilt in the sashes to access both sides of the glass from inside your home. Single-hung windows also are available, with a tilt-in bottom sash only. Far Right: Narrowline frame and sashes enhance the aesthetic appeal, inside and out. Double-Hung Windows Comfortable, playful and practical, home is inspired by life. • Narrowline frame and sashes with fusion-welded corners for exceptional beauty, strength and energy efficiency. • Integrated sash-to-sill interlock provides a unified wall of strength, fortifying the sash to help prevent bowing in harsh winds. • Low-conductive composite reinforcement 8 in the meeting rails allows for secure mounting of hardware and improves energy efficiency. • True sloped sill creates a highly efficient drainage system to inhibit water and debris accumulation. • Constant force balance system provides smooth raising and lowering of sashes. • Hidden screen track for a neat, clean appearance. 8Double-hung base model will automatically be upgraded to ST (steel reinforcement) for all units ordered in excess of 48″ wide or 84″ high. 9 10 SIMPLICITY AND EASE Visually sleek and deceptively strong, sliding windows are distinct in their slim silhouette, ample glass area and smooth gliding action. Mezzo Dual Sliding Window sashes slide horizontally for easy opening and closing and lift out for convenient cleaning.9 The heavy-duty construction and weathertight fit ensure excellent performance and protection. • Narrowline frame and sashes with fusion-welded corners for exceptional beauty, strength and energy efficiency. • Insulated glass unit with double-strength glass and warm-edge spacer system provides thermal protection and longevity. • Embedded, multi-chambered construction creates airtight insulating compartments for thermal performance and strength. • Low-conductive composite reinforcement in the meeting rails allows for secure mounting of hardware and improves energy efficiency. • Nylon-encased dual brass roller system for easy-glide performance. • Hidden screen track for a neat, clean appearance. Wide-open volume and natural light, the perfect stage for the perfect day. Sliding Windows Above: Quiet and smooth operation is assured with a precision-engineered roller system. 9Sashes on larger sliding windows may be difficult to lift out due to weight. PICTURE WINDOW 11 SOMETIMES BOLD, ALWAYS BEAUTIFUL The true beauty of the picture window is its versatility. Whether grand or small, alone or combined with other window styles, Mezzo Picture Windows and Special Shapes make a statement of quality. The narrowline frame and full glass exposure offer an unobstructed outdoor view, while the high-performance insulating components provide a strong shield of protection against harsh weather and energy loss. • Narrowline frame with fusion-welded corners for exceptional beauty, strength and energy efficiency. • High-performance insulated glass unit with double-strength glass and warm-edge spacer system (picture windows) provides thermal protection and longevity. • Embedded, multi-chambered construction creates airtight insulating compartments for increased thermal performance and strength. • Choose from a variety of architectural styles, including Circle Top, Quarter Arch, Eyebrow, Half Eyebrow, Ellipse, Full Circle, Hexagon, Octagon, Pentagon, Cathedral, Trapezoid, Triangle and more. Above: Picture windows and special shapes invite creativity when designing your home’s window system. Use alone or combine multiple units to create a dramatic focal point. Picture Windows and Special Shapes SPECIAL SHAPE 12 Casement and Awning Windows CASEMENT WINDOWS • Beveled exterior sash design creates the appearance of a larger glass area with an attractive slimline look. • Step-down frame with compression- type inner bulb seal achieves a tight seal during inclement weather. • State-of-the-art hinge system provides multi-directional ventilation and allows sash cleaning from inside the home. • Positive crank mechanism permits easy operation when opening and closing the sash. • Multi-point locking system ensures a tight seal and increased comfort. • Multiple lite configurations available in a single mainframe. AWNING WINDOWS • Beveled exterior sash design gives the window the appearance of a larger glass area with an attractive slimline look. • Heavy-duty, state-of-the-art hinge system provides easy operation when opening and closing. • A dual locking system on each side of the window ensures a tight seal for added comfort. • Multiple lite configurations available in a single mainframe. • Combine with fixed lites for an expanded window design with refreshing airflow. THE PINNACLE OF UTILITY AND DESIGN There’s more to casement and awning windows than meets the eye. There’s history and practicality, merging the old-world craftsmanship of a charming crank handle with the refined details of today’s advanced window technology. Featuring a low-profile, easy-touch nesting handle, the casement sash gently opens outward, while the awning window opens up and out. AWNING WINDOW CASEMENT WINDOW A refreshing infusion of personality and style. BAY AND BOW WINDOWS • 1-1/4″ furniture-grade hardwood veneer is standard in the construction of head, seatboard and jambs. • Head and seatboard are available in oak or birch veneer finishes and may be finished with your own paint or stain.† • Internal sill pan adds greater protection against water infiltration. • 3″ or 5″ high-density foam insulated seatboard option adds comfort and promotes energy efficiency . • Heavy-duty turnbuckle hanging system; no external braces are needed. • Exterior roof system is available with optional copper or painted aluminum roof clad kits. 13 Bay, Bow and Garden Windows BRING OUT THE CHARACTER A striking focal point, a cozy reading nook, a bright display of herbs and flowers – anything is possible with bay, bow and garden windows. Each of these windows can transform your room from basic to beautiful. GARDEN WINDOW BAY WINDOW BOW WINDOW GARDEN WINDOWS • Fully welded mainframe for greater strength and stability. • Clear 1″ thick (nominal) insulated glass unit provides all-weather protection. • Top sloped insulating glass panel is tempered for increased durability. • Multi-point locking system for a tighter seal and added comfort. • Available with white screens and white hardware only. Bright Chrome Brushed Chrome Bright Brass Antique Brass Bright Chrome Brushed Chrome Bright Brass Antique Brass 14 Sliding Patio Doors A naturally beautiful point of view. FRENCH PATIO DOOR HANDLES CONTEMPORARY AND CLASSIC PATIO DOOR HANDLES White White Beige Beige Classic Clay Classic Clay INTERIOR INTERIOR • Premium vinyl mainframe and sash extrusions are colored throughout – won’t chip, peel, crack or warp and never need to be painted. • Mainframe and sash feature a double-wall design and multi-chambered construction for increased strength. • 1″ thick (nominal) insulated glass unit with warm-edge spacer system promotes energy conservation year-round. • Dual internal/external weatherstripping on the sash for energy efficiency. • Steel reinforcements at the interlocks and lock rails increase structural integrity. • Precision-engineered tandem roller system ensures easy and quiet door operation. • Heavy-duty extruded aluminum screen features four adjustable rollers for smooth gliding. • Available in a 2-panel style in 5′, 6′, 8′ and Wisconsin-style widths; 3-panel styles in 9′ and 12′ widths; and a 4-panel style in a 12′ width with center panels that open to each side. • Choose from a variety of solid colors, woodgrain options, hardware finishes and grid patterns to complement your Mezzo Windows. Opposite page upper left: The Contemporary-style patio door features 3″ symmetrical sash rails for a sleek, clean- line design. Opposite page upper right: The Classic-style door conveys traditional beauty with generous 5″ sash rails. Opposite page bottom: The 5″ top rail, 7″ bottom rail and 3″ side rails of our French-style door combines French door charm with floor space-saving functionality. Contemporary, Classic and French-style exterior patio door handles are available in White, Beige, Classic Clay and Black. LEGENDARY QUALITY WITH MODERN DETAIL There’s no better measurement for a patio door than performance. From a quality design and excellent construction to smooth operation and enduring beauty – our sliding patio doors are a premier choice. Each door combines superior manufacturing technology with artistic detail to provide an entry that’s beautifully welcoming and always weathertight. Choose from three distinctive styles in Contemporary, Classic and French. 15 CONTEMPORARY-STYLE SLIDING PATIO DOOR FRENCH-STYLE SLIDING PATIO DOOR CLASSIC-STYLE SLIDING PATIO DOOR Black White Woodgrain ¥ Architectural Bronze Rich Maple Woodgrain American Terra Light Oak Woodgrain Hudson Khaki Dark Oak Woodgrain Silver White †† Castle Gray Classic Clay†† Beige†† White †† Desert Clay Foxwood Woodgrain Sand Dune Cherry Woodgrain English Red Classic Clay†† Forest Green Beige †† 16 FrameWorks ® Color Collection EXCEPTIONAL STYLE FOR EVERY HOME Beauty and vision, performance and strength – it all comes together in Mezzo’s exciting collection of styles, colors and custom accents. Our FrameWorks exterior colors feature a cutting-edge polyurethane coating technology with heat-reflective pigments for a remarkably strong and fade-resistant finish. Interior woodgrain laminates are performance-engineered for superb durability that maintains its attractive appearance over the life of the product. INTERIOR COLORS EXTERIOR COLORS †† Extruded solid color. Note: Classic Clay base is not available with exterior color finishes. ¥ White woodgrain is available with a Beige or Classic Clay base only. Note: White, Beige and Classic Clay windows and patio doors will have matching interior hardware. Windows and patio doors ordered with a Light Oak, Dark Oak or Rich Maple interior will receive Pontiac Gold hardware. Windows and patio doors ordered with a Cherry or Foxwood interior will receive Brown hardware. Craftsman Prairie Double Perimeter Contoured Classic Clay Contoured Rich Maple Contoured White Contoured Beige 17 Design Options GRID OPTIONS Decorative grids lend an added measure of style and dimension to your windows. Contoured grids are available in 3/4″ and 1″ profiles with complementary colors and matching woodgrains.10 All grids are enclosed within the insulated glass unit for easy cleaning. First, select a grid pattern from one of our five styles, and then choose a grid profile to achieve your ideal finished look. Flat Grids – available in Colonial, Diamond, Craftsman, Prairie and Double Perimeter patterns. Contoured Grids – available in Colonial, Craftsman, Prairie and Double Perimeter patterns. V-GROOVED CUT GLASS Mezzo Windows and Alside Patio Doors offer three classic V-grooved cut glass patterns – the perfect way to add a touch of elegance without obstructing the view. SIMULATED DIVIDED LITES Simulated Divided Lites 11 expertly combine the distinctive historical window design with the superior quality, energy efficiency and easy-care convenience of today’s advanced technology. 11Not available with triple-pane glass packages. Flat White Flat Beige Colonial Prairie Diamond 1-1/4″ with Mill Finish Shadow Bar 7/8″ with Mill Finish Shadow Bar Flat Classic Clay Colonial Diamond Contoured Cherry Contoured Dark Oak Contoured Foxwood Contoured Light Oak PATTERNS PROFILES 101″ contoured grids are not available in matching woodgrains. TRIMWORKS® EXTERIOR TRIM SYSTEM This full-frame window replacement system features a variety of exterior casing and brickmould options that are custom fabricated with each window for a weathertight installation and beautiful finished look. Flat Casing Available with and without bullnose sill. Brickmould Available in 1-1/2″ and 3/4″ profiles. Peace of Mind ©2023 Alside. Trademarks mentioned in this document are the property of Alside, its affiliates, or their respective owners. *See your Alside Sales Representative for additional information regarding any questions you might have, or any assertions herein, concerning energy efficiency or savings. Energy savings will vary. Energy savings assume proper installation and use. Not all products are ENERGY STAR-certified. **Insulated glass (IG) units that require capillary tubes may experience some argon gas depletion. † All wood components require proper prep of the hardwood prior to painting or staining in order for the wood surface to accept the paint or stain. Failure to follow the published finishing procedures may result in an unsightly finish. It is imperative that your new bay or bow window is sealed and finished properly within the first 30 days after installation. Failure to properly finish and seal all of the wood components may cause the wood to fade, swell, warp, or develop other defects that would not be covered under your normal product warranty. ¥¥ For a copy of the written product warranty please visit www.alside.com/support/warranties/ or contact your Alside Sales Representative. Limited warranty does not apply to damage caused by faulty or improper installation, or causes outside of Alside’s control. WARNING: Screen will not stop child from falling out window. Keep child away from open window. The only purpose of the screen is to reduce the infiltration of insects. Colors may be slightly different from their appearance in this brochure. Make final color selections using actual product samples. All specifications and designs subject to change without notice. Printed in USA. 12/23 35M/OP 75-2934-01 Alside 3773 State Road Cuyahoga Falls, Ohio 44223 1-800-922-6009 www.alside.com Smarter choices for a better world, today’s homeowners are happily choosing green. GREEN INSPIRATION Alside Windows and Patio Doors are performance-engineered to help conserve energy and reduce the consumption of fossil fuels used for heating and cooling homes. Using less energy to heat and cool your home not only saves money, it can reduce your home’s carbon footprint as well. High-quality products with a long lifespan can also help lessen your impact on the environment. Protecting our natural resources and choosing more sustainable products are just a few ways we can help safeguard our planet. Together, we can encourage ecological well-being with everyday actions of environmental stewardship. THE ALSIDE LIFETIME LIMITED WARRANTY Mezzo Windows are made by Alside, a recognized leader in product innovation, manufacturing excellence and uncompromising quality control. That’s a reputation you can count on, from the day your windows are installed until the day you sell your home. And to make your buying decision easier, Alside backs all Mezzo Windows with a Lifetime Limited Warranty, ¥ ¥ along with an optional glass breakage warranty. In addition, our FrameWorks Color Collection exterior finishes carry a 10-year fade-resistance warranty – further assurance of lasting performance and value.

The polystyrene granules contain graphite, which creates a distinct silver-gray color and increases the insulating performance beyond conventional EPS foam insulation. INTEGRATED ENERGY-SAVING DESIGN AND CONSTRUCTION Take a closer look – Mezzo Windows with enhanced cavity foam insulation are different than other windows. The silver-gray foam insulation provides greater thermal protection to keep your home warm in the winter and cool in the summer with less energy spending.* • The foam incorporates high-purity graphite granules into the expanded polystyrene (EPS) raw material. • Each polystyrene granule contains graphite, giving it a silver-gray color and increasing its insulating performance above conventional EPS foam insulation. • The carbonized foam material reflects radiant heat, lowers the thermal conductivity and improves the insulation capacity. • Select chambers of the window are thermally reinforced with the precision- contoured insulating foam liners to increase energy efficiency and achieve a lower U-Factor. • U-Factor represents the window’s resistance to heat flow and energy loss – the lower the U-Factor, the greater the energy savings. • Available in single-hung, double-hung, sliding and picture windows. ©2023 Alside. Mezzo and Alside are registered trademarks of Associated Materials, LLC. *See your Alside Sales Representative for additional information regarding any questions you might have, or any assertions herein, concerning energy efficiency or savings. Energy savings will vary. All specifications and designs are subject to change without notice. Printed in the USA. 01/23 2M/OP 75-2545-01

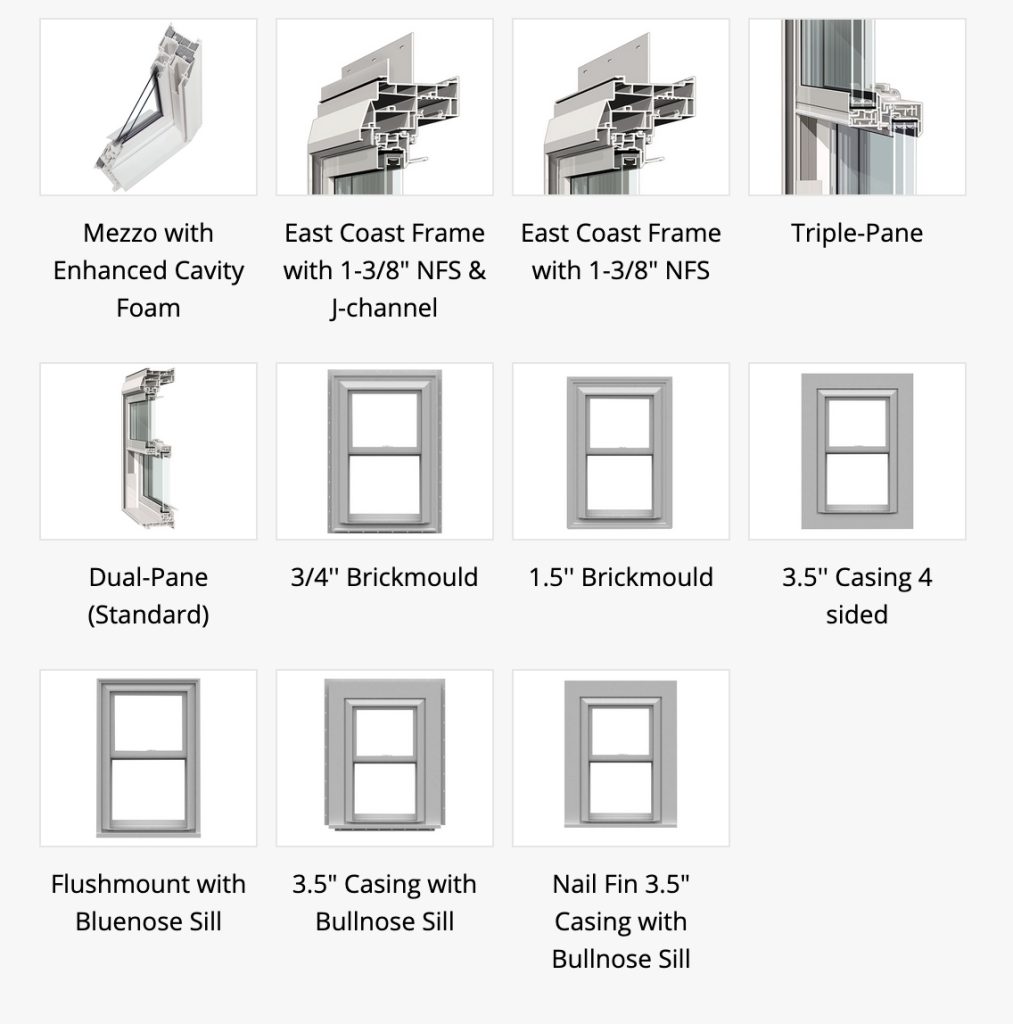

Mezzo’s cavity foam insulation technology features carbonized foam liners in select channels of the head, jamb and sill for year-round protection against energy loss. Mezzo Windows with Enhanced Cavity Foam Insulation Do the replacement windows you’re considering for your home have high-performance cavity foam insulation? ENGINEERED FOR YEAR-ROUND ENERGY SAVINGS ! 3002 HP High-Performance Sliding Window Protect Your Home from Severe Weather Precision-engineered to meet the challenging demands of intense wind and rain, Mezzo 3002 HP Sliding Windows are an excellent choice for coastal regions or areas with severe weather. The high-performance construction combines Mezzo’s clean-lined aesthetics with heavy-duty structural upgrades to provide superior strength and durability – as well as peace of mind that your home is protected with a powerful shield. ©2021 Associated Materials, LLC. Alside and Mezzo are registered trademarks of Associated Materials. USGBC and related logo is a trademark owned by the U.S. Green Building Council. Specifications subject to change without notice. Colors are reproduced by lithographic process and may vary slightly from colors of actual product. Make final color selections using actual product samples. Printed in USA. 04/21 PDF 75-2941-01 Alside 3773 State Road Cuyahoga Falls, Ohio 44223 1-800-922-6009 www.alside.com Please recycle STRONGER BY DESIGN, PROVEN TO PERFORM Mezzo 3002 HP Sliding Windows meet or exceed Performance Grade (PG) 50 requirements for resistance to air pressure, water penetration and structural load – creating a highly effective barrier in areas that experience severe rainstorms and harsh coastal climate conditions. The higher the PG rating, the better the window will perform. FORTIFIED WITH STRUCTURAL COMPONENTS AND UPGRADES • An extruded aluminum roller track, instead of a standard vinyl track insert, delivers higher water resistance. • Two new steel reinforcements in the lock and keeper stiles and reinforced rails increase structural integrity to limit the deflection under load. • A metal block has been added to the head, and metal slide brackets have been added to the top and bottom of the sashes. The metal brackets on the sashes engage the metal block in the head and the aluminum roller track in the sill – resulting in a higher windload rating. Sashes do not lift out for easy cleaning. • A recessed lock will be standard. • Two panes of heavy-duty 5 mm (13/64″) glass in the insulated glass unit increases durability and energy efficiency, with an overall IGU thickness of 3/4″. • Available in the Box/Replacement frame only; nail fin frame options and vent latches are not available on the 3002 HP. • Interior woodgrain finishes are available; exterior painted finishes are not available. • Triple-pane glass options are not available. ADDITIONAL FEATURES • Fusion-welded sashes and mainframe for exceptional style, strength and energy efficiency. • Embedded, multi-chambered construction creates airtight insulating compartments for increased thermal performance and strength. • Nylon-encased dual brass roller system for easy-glide operation. EXTERIOR PALETTE INTERIOR PALETTE White1 White1 White Woodgrain2 Dark Oak Woodgrain Beige 1 Beige 1 Rich Maple Woodgrain Foxwood Woodgrain Classic Clay1 Classic Clay1 Light Oak Woodgrain Cherry Woodgrain 1Extruded solid color. 2 White woodgrain is available with a beige or classic clay base only. MEZZO 3002 HP SLIDING WINDOWS Window Size 84″ x 48″ 72″ x 36″ Tested To PG 50 PG 55 GREATER RESISTANCE TOINTENSE WIND & RAIN! Mezzo® Full-Frame Replacement System with SwiftLock® Technology PATENTED DECORATIVE TRIM INNOVATION! KEY PARTS OF THE SYSTEM: Why Choose a Full-Frame Window Replacement? Completely removing the old vinyl window, including its nail fin, and installing a new integral nail fin window is the most reliable solution for replacing vinyl windows. This full-frame replacement method ensures a superb installation of your new windows and custom-made trim for a beautiful finished look throughout your home. Discover the look and performance of The Mezzo Full-Frame Replacement System Looking to Replace Your Vinyl Windows? The Mezzo Full-Frame Replacement System is an excellent choice due to its superior performance, pleasing aesthetic and innovative, snap-fit trim. This precision-engineered system helps prevent water intrusion while delivering durability and energy efficiency.1 And now with Trimworks, you’re ensured consistent beauty across all the windows of your home in a variety of aesthetic options. MEZZO REPLACEMENT VINYL WINDOWS High-performing, narrowline frame for greater viewable glass and superior energy efficiency. EFFECTIVE FRAME DESIGN A nailing flange integral to the window frame provides for proper flashing and water management. TRIMWORKS DECORATIVE WINDOW ACCENTS Efficient trim solution ensures a pristine, uniform appearance for all windows replaced on the home. A unique solution that provides a superb installation, along with peace of mind and added value. Our most popular window line now has an innovative trim solution designed for full-frame replacement projects. In addition to the beauty and performance of Mezzo® Windows installed with proper flashing and water management methods, you get matching Trimworks® Decorative Window Accents featuring our secure SwiftLock® Technology. Not only is this a smarter way to replace your vinyl windows, you’re going to love the consistent, clean look and custom fit. It’s the finishing touch that truly makes a big difference! Benefits of the Mezzo Full-Frame Replacement System: BEAUTIFUL Delivers a variety of brickmould or casing looks in on-trend profiles and color options. Choose from three solid extruded vinyl colors and 10 exterior painted colors. CONSISTENCY Creates a uniform, clean-finished aesthetic from window to window. WATERTIGHT A properly flashed integral nail fin helps prevent water intrusion. CUSTOM-MADE Trimworks Decorative Window Accents are fabricated with each window for an exact color match and fit, no matter the size or configuration. SUPERIOR QUALITY Developed for the Mezzo window system, which has advanced design innovations paired with ultra-efficient insulating glass for exceptional functionality and style. WEATHER-TESTED Laboratory tested to withstand the demanding challenges of high winds.2 INNOVATIVE Patented SwiftLock Technology trim installation method ensures a secure, perfect fit. MORE VIEWABLE GLASS By removing the old window frame entirely, your new window will be larger and provide more viewable glass than a conventional install. Beautiful. Durable. Essential. This innovative full-frame replacement solution achieves a watertight seal and consistent aesthetic across all windows. With installation ease, Mezzo Windows with Trimworks Decorative Window Accents will increase the curb appeal of your home from every angle. ©2023 Alside. Trimworks, Mezzo, SwiftLock and Alside are registered trademarks of Associated Materials, LLC. 1See your Alside Sales Representative for additional information regarding any questions you might have, or any assertions herein, concerning energy efficiency or savings. Energy savings will vary. 2Assembled units were exposed to 135 mph winds with the brickmould and casing staying affixed to the window. USGBC and related logo is a trademark owned by the U.S. Green Building Council. Colors may be slightly different from their appearance in this brochure. Make final color selections using actual product samples. All specifications and designs subject to change without notice. Printed in USA 02/23 1.5M/OP 75-7402-01 Alside 3773 State Road Cuyahoga Falls, Ohio 44223 1-800-922-6009 www.alside.com Please recycle this literature. Flat Casing or Brickmould Options From contemporary to traditional, Trimworks Decorative Window Accents are available in multiple designs to add dimension and detail to the appearance of your home. Exterior Color Options Beauty and performance come together in Mezzo’s full array of curated colors, featuring a specially formulated polyurethane coating technology with heat-reflective pigments for a strong and fade-resistant finish. White* Beige* Classic Clay* Black Hudson Khaki English Red Castle Gray Architectural Bronze Desert Clay Forest Green American Terra Sand Dune Silver *Extruded solid color. Note: Classic Clay base is not available with exterior color finishes. Flat Casing Available with and without bullnose sill. Brickmould Available in 1-1/2″ and 3/4″ designs. Express Your Personal Style Beautiful and livable – and very much you. Where does your concept of “home” start and where do you want it to go? Trimworks Decorative Window Accents has a smart solution for every exterior design approach. A great way to spark the creative process is to take a fresh “first look” at your home’s architectural style and space and imagine your exterior design exactly as you want it. ISSUED TO ORIGINAL PURCHASER–PRESENT PROPERTY OWNER PROPERTY ADDRESS CITY STATE ZIP PHONE DATE OF WINDOW INSTALLATION DEALER’S NAME NUMBER AND TYPE OF WINDOW PURCHASED Commercial Applications If the building in which the Alside Vinyl Window System is installed is owned by an entity other than an individual resident owner, whether by a corporation, partnership, an unincorporated association, or by a government or public entity, including without limitation, a church or school, then the warranty period shall be a Thirty (30) Year Prorated Limited Warranty from the date of window installation, applicable to all window parts and components, under the prorated basis of this Warranty, with labor at no charge to Property Owner on warranted work for a one (1) year period, from the date of window installation, and subject to all other terms and conditions of this Limited Warranty. Suggested Cleaning of Alside Vinyl Windows Glass: Clean glass with a mixture of mild dish soap and water. Rinse completely with clear water, then wipe dry with a soft cloth to avoid water spots. Avoid washing windows in direct sunlight. Never use petroleum-based cleaners or caustic chemicals on the glass. Vinyl Sashes and Mainframes: Vacuum dirt from sill and track areas before washing. Clean vinyl with a mixture of mild dish soap and water. Mild, non-abrasive soaps are usually safest for most dirt and stain removal. Always rinse completely with clean water and wipe dry. Screens: Remove from window, then wash on a flat, clean surface with mild soap and water and a soft brush. Rinse, wipe dry and then reinstall. For additional information, you may download AAMA’s Caring for Your Windows and Doors pamphlet at www.aamanet.org. HIGH CONCENTRATION CLEANERS MAY CAUSE DAMAGE TO GLASS AND VINYL. DO NOT USE SOLVENTS, PAINT REMOVERS, OR CLEANERS CONTAINING ABRASIVE PARTICLES. This cleaning information is suggested in an effort to be of assistance; however, Alside can assume no responsibility for results obtained which are dependent on the solution chemicals as prepared and method of application. Alside Vinyl Window Systems are manufactured and warranted by: Alside, 3773 State Road, Cuyahoga Falls, Ohio 44223. Alside 3773 State Road Cuyahoga Falls, Ohio 44223 For warranty questions call: 1-800-489-1144 Want to know more? Visit our website at www.alside.com ©2021 Alside Printed in U.S.A. 04/21 12M/LP 75-2719-01 Alside is a registered trademark. Congratulations! We hope you enjoy many years of greater comfort and added convenience with your beautiful new Alside Windows. It is with pride we custom built each one — just for you and your home. With proper care they’ll give you a lifetime of worry free service. Thanks for choosing us . . . to change the way you see your world. Window Systems Lifetime Limited Warranty W I N D O W S Y S T E M S WITH TRANSFERABILITY PROVISIONS Window Systems Lifetime Limited Warranty Alside, the Manufacturer of Alside Vinyl Window Systems, makes available to the Original Purchaser–Present Property Owner the Lifetime Limited Warranty, warranting the Alside Vinyl Window System for as long as the Property Owner shall own and live in the property at the stated property address, from date of window or patio door installation, under normal use and service, against specified defects in material and workmanship of the Alside Vinyl Window System, occurring as a direct result of the manufacturing process, and subject to the terms and conditions of this Limited Warranty. Lifetime Limited Warranty – Vinyl Sash Frame and Vinyl Mainframe For as long as the Original Purchaser–Present Property Owner shall own and live in the property, the rigidized vinyl in the window/patio door sash frames and in the window/patio door mainframe of the basic window unit will be warranted against cracking, warping, peeling, flaking, blistering or corroding. Lifetime Limited Warranty – Moving Parts of the Basic Window Unit The moving parts of the basic window unit, consisting of the balance to raise and lower the window sash or the brass wheels to slide the sash, and locking mechanism to secure the window or patio door sash, are all warranted for as long as the Original Purchaser–Present Property Owner shall own and live in the property. Lifetime Limited Warranty – Fiberglass Screening and Screen Frame The fiberglass screening material used in the window/patio door screen and the material for manufacture of the screen frames are warranted against manufacturing defects resulting in rotting or rusting, for as long as the Original Purchaser–Present Property Owner shall own and live in the property. Should such a manufacturing defect occur, the Manufacturer agrees to furnish new screen material or new screen frame material to the Property Owner, transportation charges payable by the Property Owner. Lifetime Limited Warranty – Insulating Glass Unit The hermetically sealed insulated glass unit of the Alside Vinyl Window/ Patio Door System is warranted for as long as the Original Property Owner shall own and live in the property from date of window installation against development of material obstruction of vision occurring from manufacturing defects, resulting from film formation or dust collection between the interior glass surfaces, caused by failure of the hermetic seal, under conditions of normal use and service. Labor Provisions During the one (1) year period from date of window installation, the Manufacturer will provide the labor at no charge to the Original Purchaser– Present Property Owner for repair or replacement of the warranted window part or component, under the provisions of this Limited Warranty. Except as to labor on repair or replacement for one (1) year on warranted work following date of window installation, this Limited Warranty does not include any additional labor costs and the Manufacturer will not be responsible after the first year for any costs incurred in the removal or replacement, installation or reinstallation of the window or of any part or component of the window, or of any repaired or replacement part or component furnished by Manufacturer under this Warranty for the window. This warranty does not cover breakage of glass or torn screening from any cause whatsoever. Residential 10-Year Limited Warranty, Commercial 3-Year Limited Warranty – Factory Applied Exterior Colors The factory-applied exterior coating on the Product is warranted against peeling, flaking, chipping, blistering and significant ultraviolet fading or discoloration (greater than 5 Delta E units) caused by natural environmental conditions, for ten (10) years from the date of Product purchase for the Original Purchaser/Present Property Owner (Three (3) years for Commercial Applications) and is subject to the transferability limitations set forth in the Limited Warranty. Alside, in its sole and unilateral discretion, will make the final determination as to whether any claim for fading, discoloration, or color change is a covered claim under this warranty. If Alside determines a claim to be a covered claim, Alside will either replace the affected product(s) or refinish the affected product(s). Replaced or refinished products or components are not guaranteed to match the original products due to the normal effects of weathering over time. Alside Vinyl Window Systems Limited Warranty Transferable to Successor Owner This Limited Warranty for the Alside Vinyl Window System is transferable one time by the Original Purchaser to the successor owner of the property, within the first thirty (30) years from date of window installation. Upon transfer, the transferred warranty period shall be limited to the unexpired remaining portion of such thirty (30) years from date of window installation, and shall not be further transferable. In the event of property transfer, the subsequent owner will be responsible for charges based on the following schedule: 0 – 10 Years No Charge 11 – 15 Years 50% 16 – 20 Years 70% 21 – 25 Years 80% 25+ Years 90% The basis for computing the cost of material for repair or replacement shall be current market prices. Property Owner Claim Procedure and Other Warranty Provisions Any claims for defects under this Limited Warranty should be submitted online at www.alside.com/support/warranties/ promptly after discovery of the claimed defect, describing the defect claimed and referring to this Warranty and date of window installation, together with the name of contractor, and proof of purchase, proof of property ownership and transfer info as requested. Allow a reasonable time for inspection purposes if determined to be necessary. If the windows do not conform to this Warranty and any such manufacturing defect occurs within the time period specified, according to the provisions of this Warranty, then Alside agrees, at its option, to repair or replace the defective part or component of the window free of charge, which shall be shipped to Alside, transportation charges prepaid, or upon prepayment of any applicable prorated amount then due from the Original Purchaser–Present Property Owner. The Property Owner will be responsible for return transportation charges back to the property location. Replacement parts or components furnished by Manufacturer under this Warranty will have the standard color available at that time. A color variance may occur between the new replacement part or component in comparison to the original window due to weathering exposure and would not be indicative of defects in the part or component. Alside reserves the right to discontinue or change any Alside Vinyl Window System as manufactured. If the part or component of the window originally installed is not available and Alside determines to make replacement, Alside shall have the right to substitute a compatible part or component, apportioned when pro rata basis applies over the warranted time period for usage to refund date. The Manufacturer does not warrant installation nor defects caused by installation. This Warranty covers only the specific manufacturing defects as specified herein. This Warranty does not cover any other damages or material failure including, but not limited to, normal weathering of sash frames and mainframe, and screen and screen frame, oxidation, accidents or intentional damage, or fire, flood, windblown objects, hail, lightning, earthquake or other Acts of God, chemical pollutants, chemicals, brick wash, mildew, negligent maintenance, fading, misuse or abuse, building settlement or structural defects, or if subjected to stresses resulting from localized heat sources which cause excessive temperature differentials over the glass surfaces or edges, or any other causes or occurrences beyond the Manufacturer’s control. This Warranty does not apply if the windows are painted, varnished or coated with any other substance. Normal weathering may cause any surface to oxidize, chalk or accumulate surface dirt or stains due to varying exposures to sunlight, weather and atmospheric conditions. The geographic location, the quality of the atmosphere and other local factors in the area, over which the Manufacturer has no control, contribute to the severity of these conditions. Caulking may be necessary on some installations to seal the frames or trim package against water and/or air infiltration. Caulking is considered a maintenance issue and is the responsibility of the homeowner. It is not considered part of the product and is not covered under this warranty. Condensation on windows may occur as the natural result of humidity within the house or building area and changes in interior / exterior temperatures, and does not indicate a defect in the window. This Warranty does not cover condensation nor frost or freezing from condensation on the windows. This Warranty is limited to the Manufacturer’s furnishing repaired or replacement parts or components of the window, free of charge, within the time period specified, or as applicable, upon payment in advance of any pro rata amount then due from the Original Purchaser–Present Property Owner, according to the provisions of this Warranty, on the Manufacturer receiving from the Property Owner any such claimed defective parts or components of the window, and with return transportation charges for any repaired or replacement window part or component being at Property Owner’s responsibility, as provided. TO THE EXTENT PERMITTED BY APPLICABLE LAW, ALSIDE DISCLAIMS ANY OTHER WARRANTY EXPRESS OR IMPLIED, THAN THAT PROVIDED FOR HEREIN. THIS WARRANTY IS IN LIEU OF AND EXCLUDES ALL OTHER WARRANTIES, GUARANTEES, CONDITIONS AND REPRESENTATIONS, EXPRESS OR IMPLIED, ORAL OR WRITTEN, STATUTORY OR OTHERWISE, INCLUDING BUT NOT LIMITED TO ANY IMPLIED CONDITIONS OR WARRANTIES AS TO THE MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE OF THE WARRANTED PRODUCT. ALSIDE DOES NOT AUTHORIZE ANY PERSON INCLUDING ITS REPRESENTATIVES, TO MAKE ANY REPRESENTATION OR TO OFFER ANY WARRANTY, CONDITION OR GUARANTY IN RESPECT OF THE PRODUCT OTHER THAN THIS WARRANTY. THIS WARRANTY CANNOT BE MODIFIED EXCEPT IN WRITING SIGNED BY ALSIDE’S WARRANTY MANAGER. THIS LIMITED WARRANTY SHALL BE THE OWNER’S SOLE AND EXCLUSIVE REMEDY AGAINST ALSIDE AND UNDER NO CIRCUMSTANCES SHALL ALSIDE BE LIABLE FOR AN AMOUNT GREATER THAN THE ORIGINAL INSTALLED COST OF THE PRODUCT OR FOR ANY CONSEQUENTIAL, SPECIAL, INCIDENTAL OR OTHER DAMAGES INCLUDING, BUT NOT LIMITED TO, LOSS OF PROFITS, LOSS OF USE, OR DAMAGE TO THE BUILDING OR ITS CONTENTS. INCIDENTAL AND CONSEQUENTIAL DAMAGES SHALL NOT BE RECOVERABLE EVEN IF THE REMEDIES OR THE ACTIONS PROVIDED FOR IN THIS WARRANTY FAIL OF THEIR ESSENTIAL PURPOSE. ALSIDE SHALL NOT BE LIABLE FOR ANY DAMAGES WHICH ARE BASED UPON NEGLIGENCE, GROSS NEGLIGENCE, BREACH OF WARRANTY, BREACH OF CONTRACT, STRICT LIABILITY OR ANY OTHER LEGAL THEORY OF LIABILITY OTHER THAN THE EXCLUSIVE LIABILITY SET FORTH IN THIS WARRANTY. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitations or exclusions may not apply to you. This warranty gives you specific legal rights and you may also have other rights, which vary, from state to state. WITH TRANSFERABILITY PROVISIONS

Lifetime Glass Breakage Warranty NON-PRORATED LIMITED WARRANTY Glass Breakage Alside, the manufacturer of the window(s) on your home, warrants that should the glass break or crack in your Alside Window System, for as long as you the Original Purchaser–Property Owner shall live and own the property at the address listed herein, Alside shall provide a new sealed glass unit at no charge except for shipping and handling charges. Installation is not covered and is the responsibility of the homeowner. Exclusions Coverage hereunder is limited to the Original Purchaser–Property Owner only and is not transferable to other owners. Removal of the windows from the premises invalidates the Warranty. Acts of God (floods, hail storms, earthquakes, fires and acts of civil unrest, wars, riots, etc.) are excluded from coverage. Only single family residential units are covered herein. Architectural (bent glass), garden windows, patio doors, tempered units, special shapes and beveled, grooved and laminated glass are excluded. Windows that exceed Alside’s size limitations are excluded. Apartment buildings, condominiums, commercial buildings are also excluded from coverage. The provisions of this Warranty are the full and complete warranty policy extended by Alside. THE WARRANTY STATEMENTS CONTAINED IN THIS LIMITED WARRANTY SET FORTH THE ONLY EXPRESS WARRANTIES EXTENDED BY ALSIDE FOR THE GLASS, IN LIEU OF ALL OTHER WARRANTIES AND THE PROVISIONS OF THIS WARRANTY SHALL CONSTITUTE THE ENTIRE LIABILITY OF ALSIDE AND THE PROPERTY OWNER’S EXCLUSIVE REMEDY FOR BREACH OF THIS WARRANTY. ALSIDE SHALL NOT BE LIABLE TO THE PROPERTY OWNER FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES OF ANY KIND FOR BREACH OF ANY EXPRESS OR IMPLIED WARRANTY ON THE GLASS. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitations or exclusions may not apply to you. This Warranty gives you specific legal rights and you may also have other rights which vary from state to state. Claims Procedure Any claims for defects under this Limited Warranty should be submitted online at www.alside.com/support/warranties/ promptly after discovery of the claimed defect, describing the defect claimed and referring to this Warranty and date of window installation, together with the name of contractor, and proof of purchase and proof of property ownership info as requested. Allow a reasonable time for inspection purposes if determined to be necessary. The replacement glass will be shipped to the nearest designated distributor. Shipping and handling charges shall be paid by the homeowner and pick-up of the unit must be arranged by the homeowner at the location. Care and Operation of Your New Windows A Guide to the Most Frequently Asked Questions CONGRATULATIONS 2 Alside Windows feature the trademarks of exceptional window design – superior quality, functional beauty and maintenance freedom. We believe your selection of Alside Windows may very possibly change your daily life in your most personal space – your home.

IMPORTANT: Do not open the sash for at least 24 hours after completion of installation. It is the manufacturer’s recommendation that your new windows not be opened for 24 hours to allow for caulking compounds to cure and set properly. HOMEOWNER INFORMATION 3 Double-hung windows are designed to allow both sashes to raise, lower and tilt in for cleaning the outside surfaces of both the upper and lower sash. To tilt in the lower sash, follow these steps: 1. Unlock the window. 2. Raise the lower sash a minimum of 3″. 3. Pull both tilt latch buttons (located on the top rail of the sash) toward the center of the sash to disengage them from the mainframe jambs. (Photo 1) 4. With both hands, carefully pull the top of the lower sash in toward you slightly beyond a 90˚ position. (Photo 2) Support the sash while cleaning the exterior. (Photo 3) To tilt in the upper sash, follow these steps: 1. Lower the upper sash to at least 2″ above the sash stops (located in the lower outside track). 2. Pull both tilt latch buttons toward the center of the sash to disengage them from the mainframe jambs. 3. With both hands, carefully pull the top of the upper sash in toward you slightly beyond a 90˚ position and rest it on top of the supported lower sash. (The upper sash cannot be tilted in without the lower sash being tilted in.) To replace the sashes to the operating positions, hold the top rail of the sash with both hands and push it all the way into the mainframe tracks. Make certain that the tilt latch buttons click in to lock the sash in the mainframe. If the tilt latches are not reengaged in the mainframe, the sash may fall inward unexpectedly. Note: To tilt both sashes in, tilt the lower sash in first, then tilt in the upper sash. To reengage the sashes, reposition the upper sash first, then the lower sash.

DOUBLE-HUNG WINDOW 4 Sliding windows are designed to roll from side to side in their own tracks. They are removable from these tracks for the cleaning of the exterior surfaces. To remove the interior sash (right sash), follow these steps: 1. Roll the right sash to within 3″ of the left side. This will enable the sash to bypass the anti-lift block located in the header of the mainframe. (Photo 1) 2. Lift the sash up into the header of the mainframe as high as it will go. 3. Pull the bottom of the sash toward you. This will clear the rollers and sash frame from the mainframe. (Photo 2) 4. Lower the sash to the floor. (Photo 3) To remove the exterior sash (left sash), follow these steps: 1. Roll the left sash to within 3″ of the right side. 2. Lift the sash into the header of the mainframe. 3. Pull the bottom of the sash toward you and lower it to the floor. (Photo 4) Carefully clean the exterior of the sashes. To replace the sashes, simply reverse this process. Note: Sashes on larger sliding windows may be difficult to lift out due to weight.

SLIDING WINDOW Just as with Alside’s other window styles, casement windows are easily cleaned from the interior of the home. To clean the casement window, follow these steps: 1. Turn the screen retainer clips 1/4 turn counterclockwise. 2. Remove the screen. 3. Clean the interior side of the sash. 4. Unlock the window. (Photo 1) 5. Crank the sash all the way to its full open position. (Photos 2 and 3) 6. Clean the exterior of the sash by reaching your arm through the space between the mainframe and the sash. (Photo 4) 7. To reinstall the screen, place it into the opening and turn the screen retainer clips 1/4 turn clockwise to hold it in place. These instructions may not apply to egress models.

CASEMENT WINDOW 6 DO’S AND DON’TS 7 DO Do open the top and bottom sash for improved ventilation. Do use both hands to support sashes while tilting them in to clean. Do support the sashes when they are in the cleaning position. Do make sure the tilt latches are fully engaged after tilting sashes back into the operating position. Do make sure the top sash on a double-hung window is closed and up all the way before locking the window. DON’T Don’t leave the lock in the locked position when closing the window; this will damage the keeper. Don’t attempt to remove the sashes on double-hung windows. Don’t use oil-based spray lubricants such as WD-40, as they attract dirt. Use a silicone spray for lubrication. Don’t use abrasive-type cleaners to clean the glass or vinyl on these windows. Don’t use solvents to clean the windows. Don’t use the crank on a casement window without unlocking the window first. Don’t use a high-pressure hose to clean the outside of a window. Don’t install a window air conditioner in a vinyl window without adequate support. Don’t paint or varnish vinyl windows. WINDOW CARE AND CLEANING 8 WINDOWS: Label and tape adhesive should be removed with alcohol-based cleaners on small glass areas only. After this is removed, thoroughly wet the glass and rinse with plain water. Glass can be cleaned with regular or ammonia-based glass cleaners. Vinyl (PVC) products can be cleaned with a solution of mild soap and water. Use any non-abrasive cleaner for tough jobs. Do not use solvents, paint removers or sharp objects to clean your windows or patio doors. Condensation is caused by excess interior relative humidity in the home. It is your responsibility to control your home’s relative humidity. For more information, request a copy of Your Guide to Common Household Condensation. If mildew is a problem in your area, use an appropriate cleaner or mildew controller found in your local store. Painting or varnishing your window is not required and will void the warranty. The tracks of the double-hung and sliding windows are exposed to the outdoor elements, which can contain abrasive elements such as dirt, leaves, sand, grease, soot, etc. If these elements are not removed, they can be ground into the vinyl tracks when the sashes are operated. A minimum semi-annual cleaning is recommended. These tracks can be cleaned with a small, stiff nylon brush, then wiped down with a soft cloth. If necessary, an occasional light coat of silicone spray lubricant on the balance shoe track of a double- hung, and the tracks of a sliding window, will help ease the operation without leaving an oily residue which can collect more abrasive elements. Follow the manufacturer’s recommendations for safe use of any chemical or cleaner. Any cleaning information suggested in this manual is only to assist you. The window manufacturer assumes no responsibility for results obtained which are dependent on the chemical solutions as prepared, and quantity and method of application. 9 SCREENS: Screens can be cleaned easily with a soft brush accessory from a vacuum cleaner. If a more thorough cleaning is desired and the screens need to be removed, follow these steps: DOUBLE-HUNG WINDOW 1. From the interior, raise both sashes to their highest position. 2. Raise the screen up to a point where you can get your hand on the lower aluminum frame section. 3. Push the screen to the left side of the window. The screen has springs on this side. 4. Once the screen is positioned as far left as possible, gently push the right side of the screen toward the exterior. 5. Once the right side is disengaged from the screen track, remove it from the left side as well. To replace the screen to its tracks, follow these steps: 1. The springs should be positioned on the left. Place the springs in the left screen track. 2. Push the screen as far left as possible. 3. Pull the right side in, center it in the right screen track, and reengage it in that track. SLIDING WINDOW To remove a screen on a sliding window, simply pull up on the aluminum screen track bottom, placing it all the way up into the top screen track. Push out the bottom to clear the screen from the bottom screen track, and disengage the screen at the top. To replace the screen, reverse the above steps. INTERIOR GLASS CARE AND CLEANING 10 S6 AND SF LOW-E INTERIOR GLASS SURFACES Simply clean your S6 or SF glass with a standard commercial glass cleaning product, such as Windex®, or a gentle soap and clean water solution. IMPORTANT: Contact with harsh or abrasive materials can damage S6 and SF glass. The following list provides important care guidelines: Rust removal products or other applications that contain hydrofluoric acid (HF) will damage the S6 and SF glass coating and cause permanent damage. Vapor from HF products can also damage the S6 and SF glass surface. Do not use Soft Scrub® or similar cleaners with abrasives that may damage the glass surface. Scratch removal or buffing the glass should not be attempted, as it may change the appearance of the coating. Razor blades or other sharp instruments should not be used when cleaning the glass. A squeegee with exposed metal edges could scratch the glass and damage the coating. If a squeegee is used, be certain it has no metal or harsh edges. If furniture polish or similar products are used to clean the window frame components or nearby furnishings, avoid spraying onto the glass. Immediately clean the glass if overspray occurs. Because the interior surface of S6 and SF glass Low-E technology reflects heat back into your home, you may notice the glass will feel cooler than a glass surface without Low-E coating. In addition, during colder months, S6 and SF glass may be more likely to have some condensation, depending on factors such as the air temperature in the room, outside air temperature and indoor percent relative humidity. Serial Number Size of Window Date of Manufacture The warranty label number references an Alside database should your window need warranty service. If you need warranty service, please visit www.alside.com/ support/warranties/ and complete the online warranty submission. 11 WARRANTY LABEL The warranty label on your windows will provide all the pertinent information about your windows for years to come. The label should be left on the window frame for possible future reference. The label includes the following information: †For a copy of the written product warranty please visit www.alside.com/support/warranties/ or contact your Alside Sales Representative. Limited warranty does not apply to damage caused by faulty or improper installation, or causes outside of Alside’s control. All specifications and designs subject to change without notice. WARNING: Screen will not stop child from falling out window or patio door. Keep child away from open window or door. The only purpose of the screen is to reduce infiltration of insects.

CondensationYour Guide to Common Household Condensation Common household condensation or “sweating” on windows is caused by excess humidity or water vapor in a home. When water vapor in the air comes in contact with a cold surface such as a mirror or window glass, it turns into water droplets called condensation. All homes have occasional condensation, such as a little fogging on the windows, but this is no cause for concern. On the other hand, excessive window condensation, frost, peeling paint, or moisture spots on ceilings and walls can be signs of potentially damaging humidity levels in your home. We tend to notice condensation on windows and mirrors first because moisture doesn’t penetrate these surfaces. Yet they are not the problem, simply the indicators that you need to reduce the indoor humidity of your home. DISPELLING THE MYTH . . . WINDOWS DO NOT CAUSE CONDENSATION You may be wondering why your new energy- efficient replacement windows show more condensation than your old drafty ones. Your old windows allowed air to flow between the inside of your home and the outdoors. Your new windows create a tight seal between your home and the outside. Excess moisture is unable to escape, and condensation becomes visible. Windows do not cause condensation, but they are often one of the first signs of excessive humidity in the air. UNDERSTANDING CONDENSATION Excessive Humidity in a Home By managing excessive humidity in your home you may very well eliminate most, if not all, of your condensation problems. SIX SIMPLE SOLUTIONS FOR CONTROLLING INDOOR HUMIDITY 1. Make sure all sources of ventilation to the outside are functional and use kitchen, bathroom and laundry room exhaust fans during and after humidity-producing activities to vent excess moisture. 2. Air out your home periodically. Opening windows for just a few minutes a day lets the stale, moist air escape and the fresh, dry air enter. 3. Check your humidifier settings. Use the humidity comfort levels provided in the table above to correctly set and balance the humidity in your home. 4. Be sure that all louvers in the attic or basement are open and large enough. You can even open your fireplace dampers to allow excess moisture to escape. 5. If you have a large number of house plants, try to concentrate them in one area and be careful not to over water. 6. If troublesome condensation persists, see your heating contractor about an outside air intake for your furnace, venting of gas burning heaters and appliances, or installation of ventilating fans. WHERE DOES INDOOR HUMIDITY COME FROM? All air contains a certain amount of moisture, even indoors. And there are many common things that generate indoor humidity, such as your heating system, humidifiers, cooking and showers. In fact, every activity that involves water, even mopping the floors, contributes moisture to the air. The climate can also contribute to condensation. For example, on cold winter days the moisture in the warm, interior air of your home can condense on the typically colder glass surfaces of your windows and patio doors. It is normal to experience condensation at the start of each heating season. During the humid summer months your home absorbs moisture and then perspires when you turn on the heat. This is only temporary. After the first few weeks of heating your home should dry out, reducing – if not eliminating – condensation. The same scenario occurs during remodeling or building projects. Due to the high levels of moisture in wood, plaster and other building materials, your home will temporarily sweat during the first few weeks of the heating season. Another factor in the condensation equation is progress. With today’s high-performance insulation, moisture-barrier materials and airtight construction, we all enjoy a more thermally efficient home – one that blocks the cold out, yet traps the moisture in, producing higher humidity levels and more condensation. REDUCING HUMIDITY IS THE KEY The best way to reduce condensation is to eliminate excessive humidity. The following table illustrates the recommended maximum indoor relative humidity based upon varying outdoor air temperatures with an indoor air temperature of 70˚F.1 Outdoor Air Temperature Indoor Relative Humidity (%RH) 20° to 40˚F ≤ 40% 10° to 20˚F ≤ 35% 0° to 10˚F ≤ 30% -10° to 0˚F ≤ 25% -20° to -10˚F ≤ 20% Below -20˚F ≤ 15% (Indoor humidity can be measured with a humidistat or psychrometer.)  ENERGY STAR name and logo are registered U.S. marks and are owned by the U.S. government. 1www.fgiaonline.org/pages/understanding-indoor-condensation (accessed 8-1-23). Printed in USA 08/23 5.7M/OP 75-2817-01 Condensation can be very difficult to solve. There are many factors that affect condensation, such as the number and type of windows in your home, the heating system, the type of insulation and vapor barrier, and even the type of soil and quality of drainage. If you still have condensation problems after following the simple preventative steps mentioned in this guide, you may need to consult a professional heating contractor or other qualified expert. Windows qualify for the ENERGY STAR® label when they meet or exceed the established guidelines for energy efficiency. This recognition is granted to only the most advanced, energy- efficient products on the market. Alside offers a variety of ENERGY STAR-certified products. Please consult your window professional to help you choose an energy-efficient glass package to meet the ENERGY STAR requirements for your home and climate zone.
